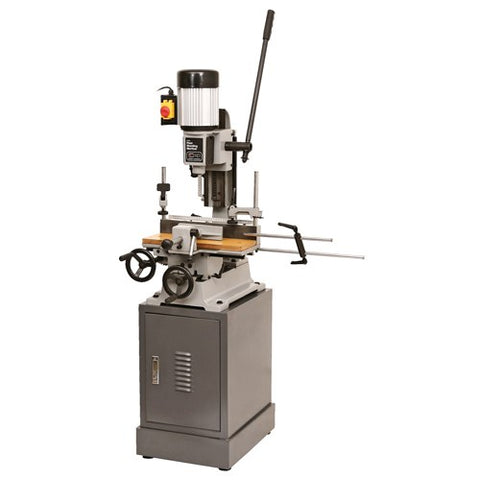

01950 Heavy Duty Standing Morticer With Cabinet

  • £881.05
  • Save £561.47


A heavy duty cast iron morticer on a cabinet stand with a maximum capacity of 25mm. The head moves smoothly on a solid rack and dovetail column, with gib strips that can be easily adjusted for accuracy and smoothness in use. Work is held securely in a quick lock clamp and powerful 1hp induction motor provides ample power for all applications. The rise and fall handle is positionable for maximum leverage.
  • Specifications
  • 230v (13amp) supply
  • 750w (1hp) motor
  • 1400rpm max. speed
  • 210mm chisel stroke
  • 6 - 26mm (1/4" - 1") chisel capacity
  • Table movement: 170mm lateral/145mm longitudinal
  • 140mm max. spindle to fence
  • Chisel to table: 210mm (max.)
  • 400 x 150mm table size
  • Cabinet stand included
  • Solid cast iron table and work clamp
  • Ratchet rise and fall handle
  • Adjustable gib strips for accuracy
  • Vertical and sideways movement stops
  • Table Size: 400 x 150mm
  • Max. Drill Depth: 70.0mm
  • Drill Chuck Capacity: 16.0mm
  • Weight: 119.0kg
  • Packaged Dimensions: 460 x 400 x 1500mm
